橋板組

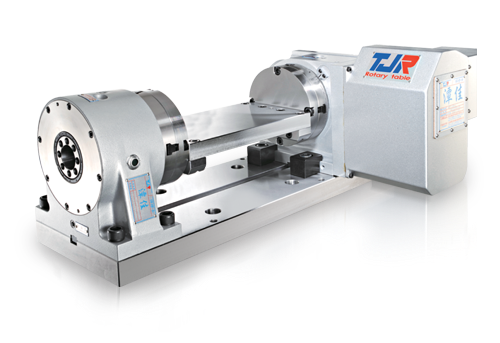

分度盤 & 圓盤尾座 & 橋板組

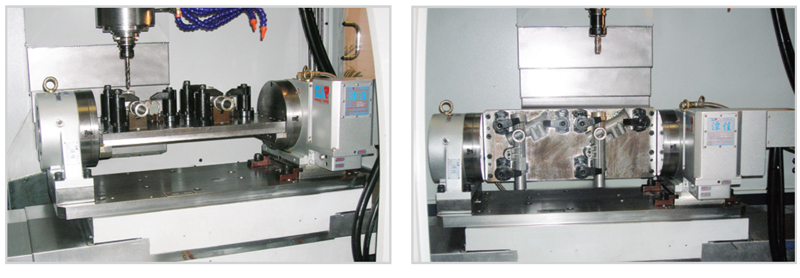

工裝實況
| 規格 (單位:mm) | z | z | z | z | |||||||||||||
| 機型/尺寸 |
A
|
B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
| AR-125 / RTA-125 | 250 | 725 | 152 | 20 | 400 | 30 | 130 | 125 | 302 | 30 | 35 | 14 | 8 | 14 | 110 | 828 | 0 |
| AR-170 / RTA-170 |
300
|
911 | 152 | 25 | 500 | 30 | 140 | 170 | 336 | 35 | 40 | 18 | 8 | 18 | 135 | 947 | 69 |
| AR-210 / RTA-210 | 300 | 1011 | 152 | 25 | 600 | 30 | 140 | 200 | 336 | 40 | 40 | 18 | 8 | 18 | 160 | 1047 | 69 |
| HR-210 / RTA-210 | 300 | 1022 | 152 | 25 | 600 | 30 | 150 | 200 | 341 | 40 | 40 | 18 | 8 | 18 | 160 | 1057 | 69 |
| HR-255N / RTH-255 |
350
|
1148 | 200 | 25 | 700 | 35 | 155 | 250 | 346 | 45 | 40 | 18 | 8 | 18 | 160 | 1305 | 69 |
| HR-320N / RTH-320 | 400 | 1297 | 235 | 30 | 800 | 40 | 160 | 300 | 416 | 45 | 40 | 18 | 8 | 18 | 210 | 1460 | 69 |
| HR-400N / RTH-400 | 450 | 1455 | 250 | 30 | 900 | 45 | 175 | 400 | 457 | 45 | 40 | 18 | 8 | 18 | 255 | 1572 | 69 |
z J為中板(過橋板)之厚度, 建議按此厚度製作, 如果厚度不足, 橋板在扭轉時易變形, 會導致誤判分度盤精度不良
